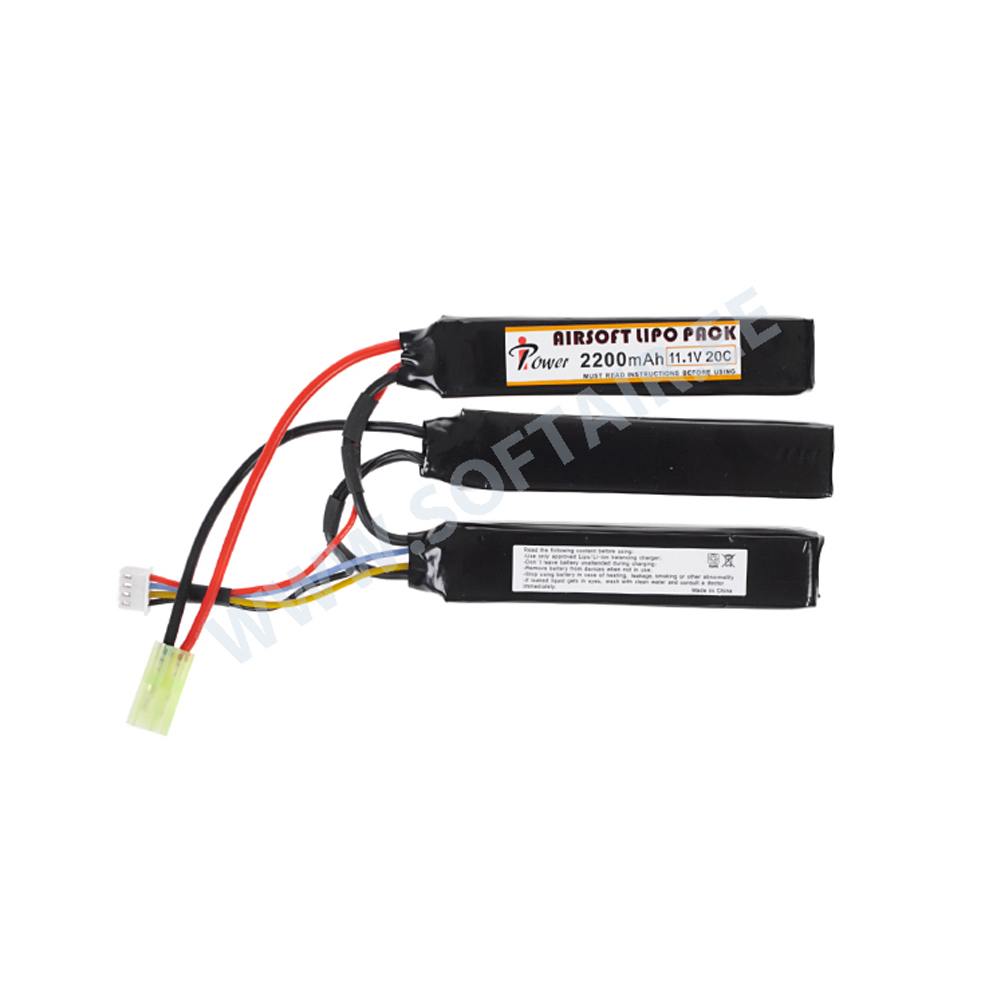

Li-PO 11,1 V 2200 mAh battery

Capacity: 2200mAh
Voltage: 3S Cell / 11.1V
Discharge: 20C Constant
Weight: 140g
Dimensions: 105x20x10mm (Each)
Balance Plug: JST-XH
Discharge Plug: Mini-Tamiya (Mini Molex)

During charging LiPo battery needs to be remembered:
* Use ONLY a charger approved for lithium batteries.
* Charging each time using the balancer is advisable. It is preferable to use it at least every 5 cycles of loading.
* DO NOT leave battery without supervision when it is charging.
* DO NOT use broken cells.
* Avoid prolonged charging, it can cause battery damage.
* If some anomalies are spotted, you must stop charging immediately.
* To avoid the probability of electric shock first unplug the charger.

During usage LiPo battery needs to be remembered:
* DO NOT exceed maximum discharge power. For example battery with a 2100 mAh capacity and 15C ratio means that the maximum discharge power can take the value 15×2100 mAh = 31500 mAh = 31,5A.
* DO NOT discharge cells below 3 volts per cell. Under 3 volts chemical reactions start that ruin the cells capability to store a future charge.
* To avoid an excessive cells discharging is advisable to use LiPo alarm. When dangerous limit voltage level per cell will be reached LiPo alarm gives sound.

During storage LiPo battery needs to be remembered:
* Store them partially charged.
* Avoid leaving discharged battery. It can cause battery damage.
* Optimal temperature during storage is 12 Celsius degrees.
* Disconnect battery after each usage.

NOTICE! Batteries are covered only by starting warranty.
