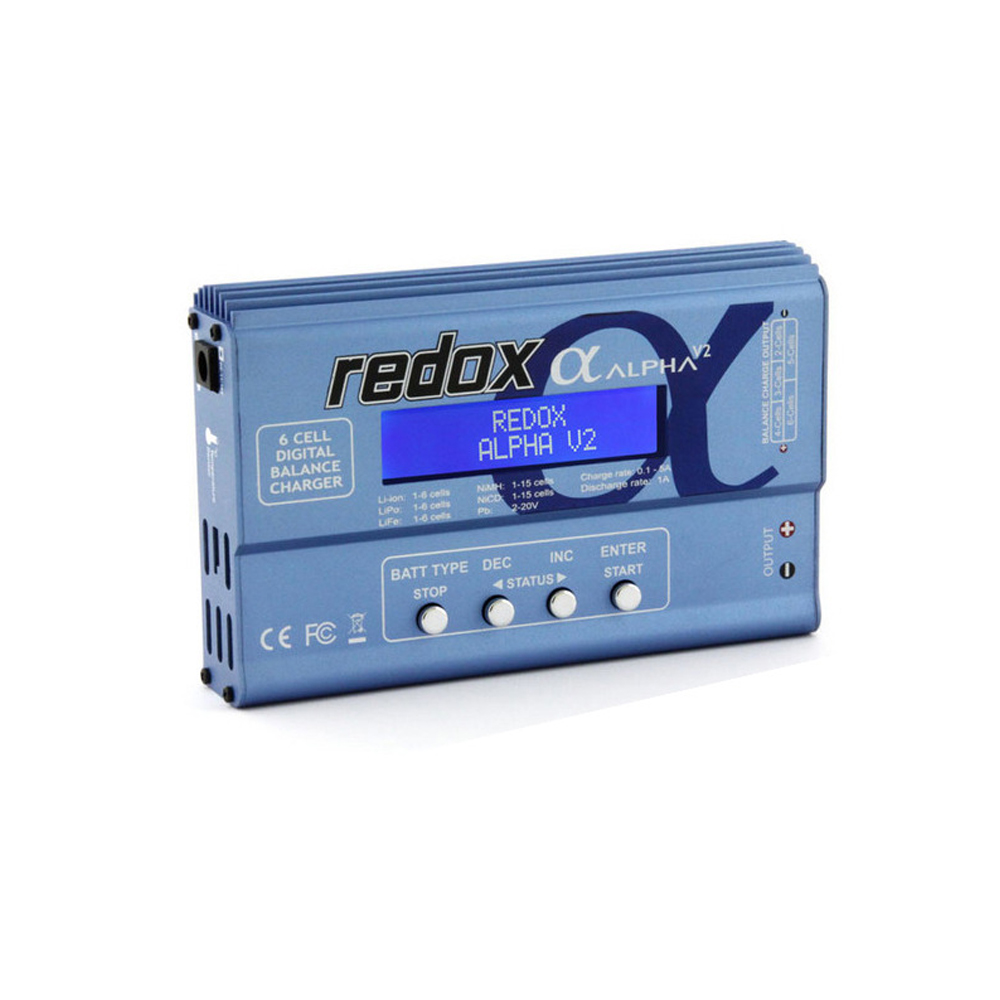

Redox Alpha V2 smartcharger

A new improved version of the popular Redox company’s Alpha charger. The Redox Alpha V2 is inter alia equipped with an actualized software ensuring a long and stable operation of the device. Additionally, a big radiator which discharges the heat very efficiently was mounted on the top of the charger. It is possible to change the charging current of the charger and to monitor the voltage of each cell while the process of charging!

Specs:

Dimensions: 134 x 86 x 26 mm
Operational voltage: DC 11.0~18.0 V
Output power:
– Maximum charging power 50W
– Maximum discharging power 5W
Charging current: 0.1~5.0A
Discharging current: 0.1~1.0A
Balancing current intensity : 300 mAh/cell
Number of supported NiCD/NiMH cells: 1~15 cells
Number of supported Li-Po/Fe/Ion cells: 1~6 cells
Supported Pb cells : 2~20V
Charger’s inbuilt memory: maximum of 5 battery packs
Battery pack cycling function
4 programming buttons
Inbuilt sockets:
– balancer sockets 2s, 3s, 4s, 5s, 6s
– Gold 4 mm sockets
– Jack type socket (powered by 12V DC)
– an optional temperature sensor socket

The set includes:

the Redox Alpha V2 charger,
power wire (Jack – crocodiles),
1 x Gold 4 mm Adapter – DEAN plug,
Additional extending adapters for the Gold 4 mm adapter – DEAN plugs:
1 x DEAN adapter plug – Crocodiles
1 x DEAN adapter plug – Servo socket (FUTABA type)
1 x DEAN adapter plug – spark plug dummy (for charging 1,5V clips)
1 x DEAN adapter plug – BEC socket

PS! Power adapter is not included!
